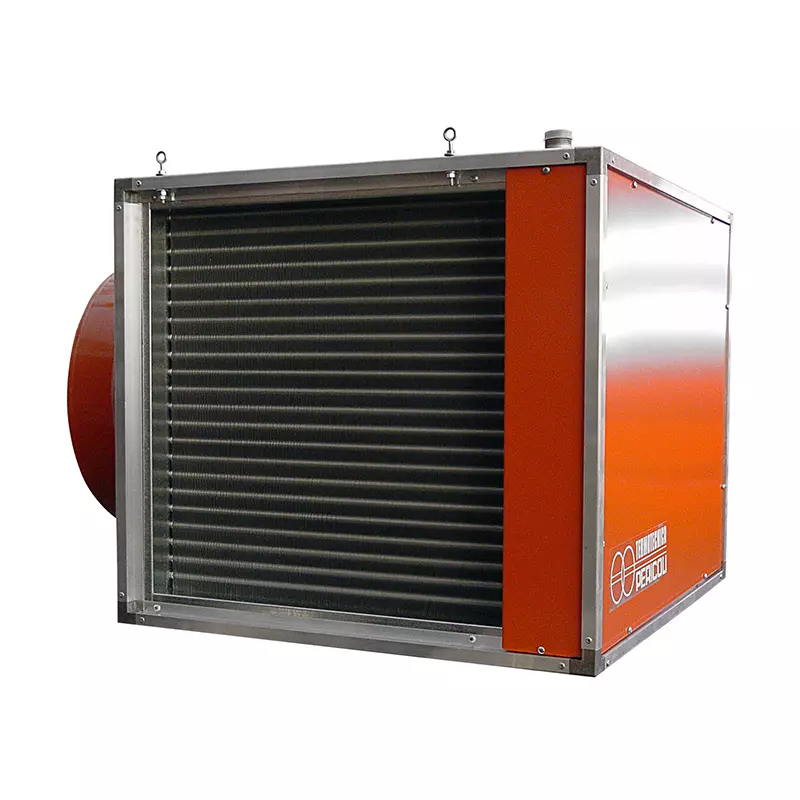

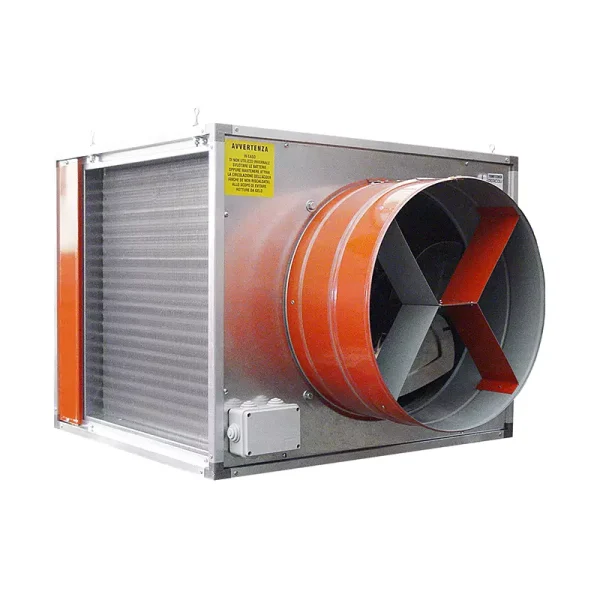

F-OTB: Direct-Driven Jet Fan with water/air Heat exchanger
The F-OTB is a direct-driven jet fan developed specifically to transfer heat produced by an external water boiler to the surrounding air. This is achieved using special copper/aluminum heat exchangers (batteries) built within a sturdy steel housing. The fan efficiently distributes the hot air either directly into the space or through canalization (ducting).
- Airheater capacities from 52 to 116 kW
- Ductable air outlet
- High-quality copper and aluminum batteries for maximum efficiency in energy exchange
- Versatile for satisfying many different installations
- Designed and produced in Italy
- High-Efficiency Copper/Aluminum Exchangers: The heating battery is constructed from a combination of copper and aluminum. This material choice ensures higher efficiency in heat transfer and a longer operational lifetime.
- High Air Displacement: The F-OTB models are characterized by their high volume air capacity. The larger 700-3 model delivers an air displacement of up to 10,000 m³/h , ensuring rapid and uniform distribution of heat across large structures like warehouses and commercial greenhouses
- Optional Impurity Filtration: The unit can be accessorized with an optional FIZ impurity filter pair. This feature helps maintain the cleanliness of the circulated air, a benefit crucial for environments where dust, fine particles, or high biological loads are present

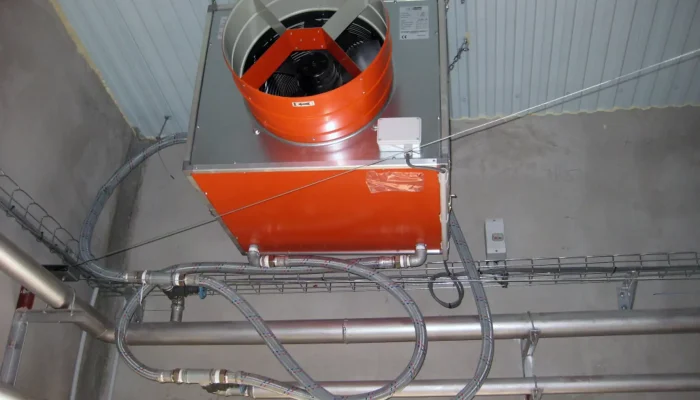

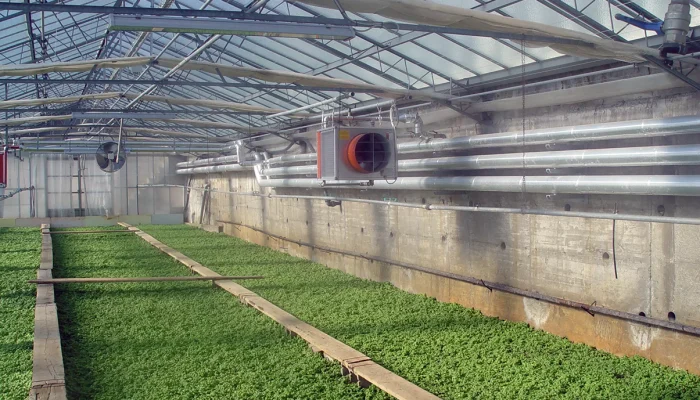

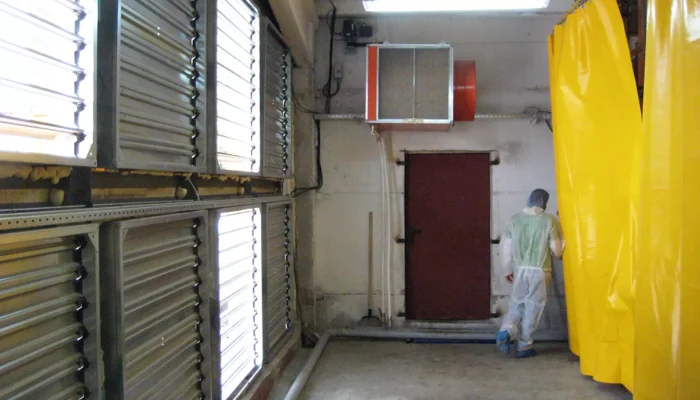

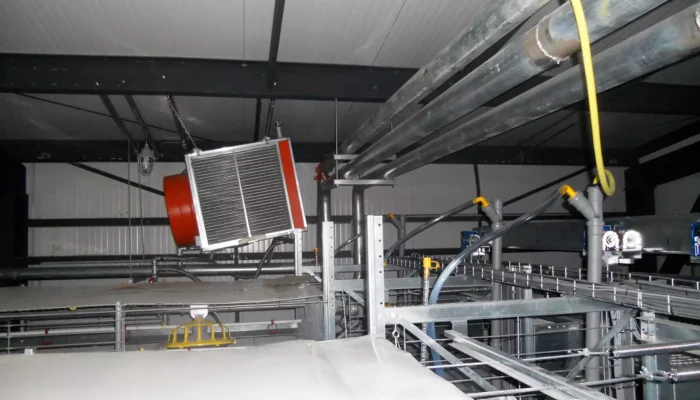

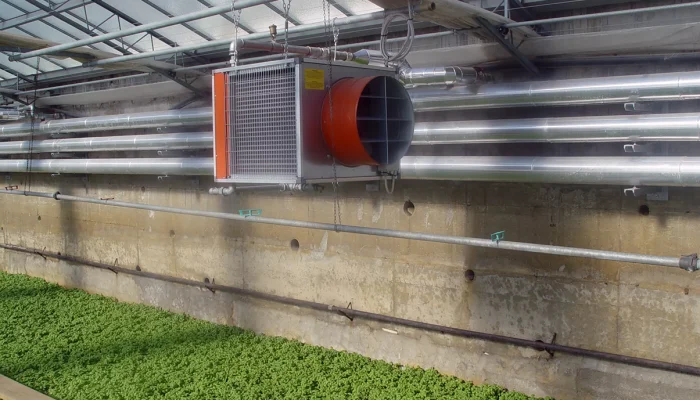

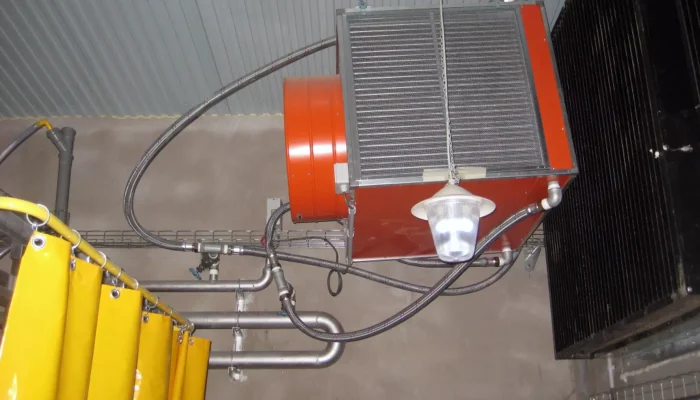

The areas of application of the product: look at our projects
